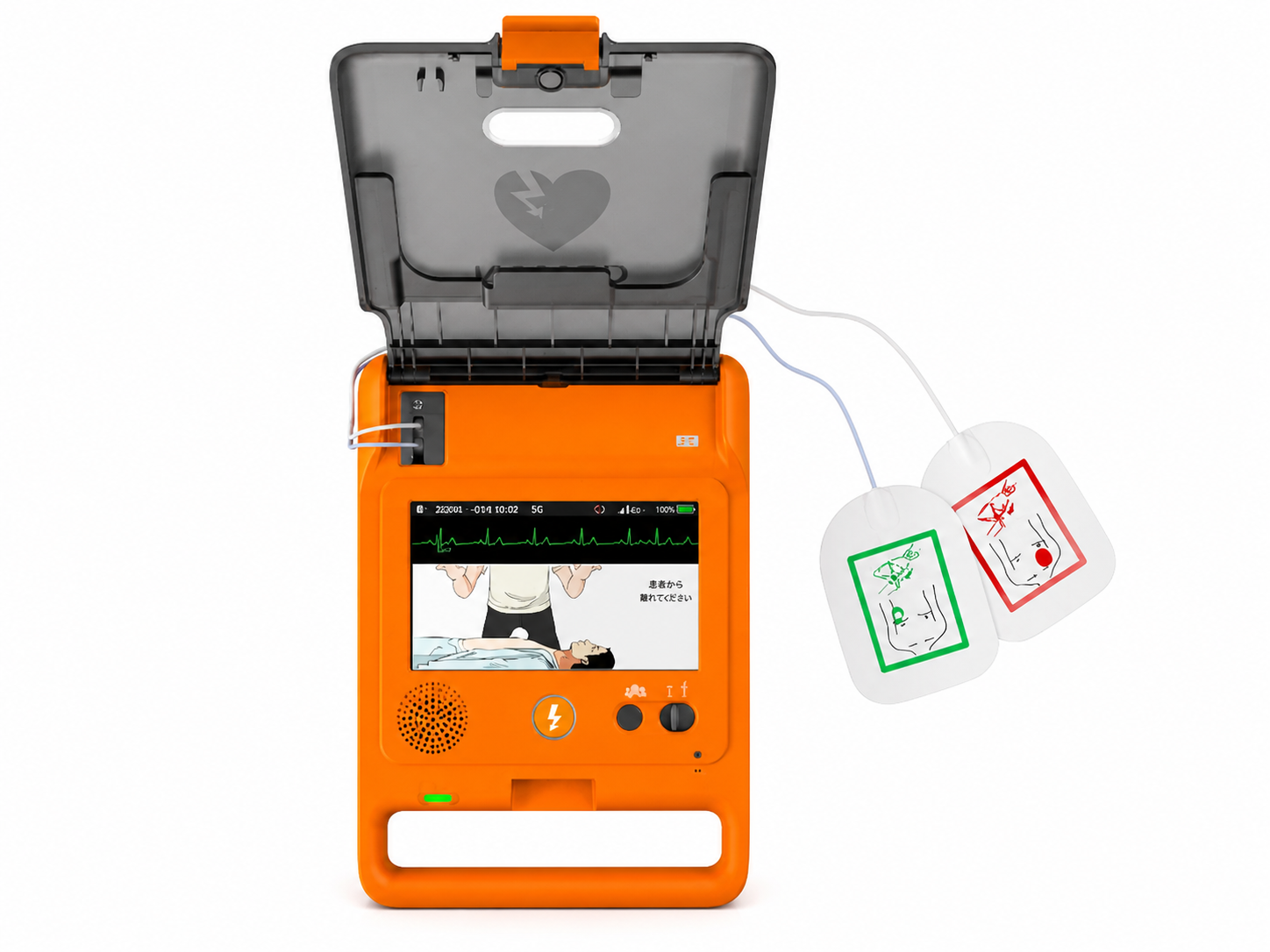

COMEN F2 / F2A Automatic External Defibrillator (AED)
The COMEN F2 / F2A Automatic External Defibrillator (AED) is a compact and reliable life-saving device designed for rapid response during sudden cardiac arrest. Built for both indoor and outdoor environments, it provides automated analysis and defibrillation with minimal user intervention, making it suitable for healthcare professionals and first responders.
Equipped with a clear 7-inch display, voice-guided prompts, and CPR coaching, the device ensures accurate and efficient operation even in emergency situations. Its robust design, long battery life, and advanced safety features make it an essential tool for hospitals, clinics, public spaces, and emergency response teams.
feature:Title|Description or use the custom.benefits metafield for automatic feature generation.The COMEN F2 / F2A Automatic External Defibrillator (AED) is a compact and reliable life-saving device designed for rapid response during sudden cardiac arrest. Built for both indoor and outdoor environments, it provides automated analysis and defibrillation with minimal user intervention, making it suitable for healthcare professionals and first responders.
Equipped with a clear 7-inch display, voice-guided prompts, and CPR coaching, the device ensures accurate and efficient operation even in emergency situations. Its robust design, long battery life, and advanced safety features make it an essential tool for hospitals, clinics, public spaces, and emergency response teams.
| General Information | |
| Model | F2 / F2A |
| Brand | COMEN |
| Product Type | Automatic External Defibrillator (AED) |
| Application | Emergency cardiac resuscitation |
| Physical Specifications | |
| Dimensions | 295 × 210 × 75.6 mm |
| Weight | 2.0 ± 0.2 kg |
| Environment | |
| Protection Rating | IP55 (dust/water resistant) |
| Operating Temperature | -5°C to 50°C |
| Storage Temperature | -30°C to 70°C |
| Humidity | 0% – 95% (non-condensing) |
| Atmospheric Pressure | 570 – 1062 kPa |
| Display | |
| Screen Type | TFT display |
| Size | 7 inches |
| Resolution | 800 × 480 pixels |
| Waveform Display | ECG waveform (≥6 seconds display) |
| Operation & Controls | |
| Operating Modes | Automatic / Semi-automatic |
| Shock Button | Manual shock delivery (semi-auto) |
| Patient Selector | Adult / Pediatric switch |
| Language Switch | Multi-language support |
| User Guidance | |
| Voice Prompts | Yes |
| CPR Coaching | Voice-guided |
| Protocol | AHA/ERC Guidelines 2015 |
| Defibrillation | |
| Waveform | Biphasic (BTE waveform) |
| Energy Levels (Adult) | 100 J / 150 J / 170 J / 200 J / 300 J / 360 J |
| Energy Levels (Pediatric) | 10 J / 15 J / 20 J / 30 J / 50 J / 70 J / 100 J |
| Energy Accuracy | ±2 J or ±10% |
| Impedance Range | 20 – 300 Ω |
| Charging Time | |
| To 200 J | < 3 seconds |
| To 360 J | < 7 seconds |
| Battery | |
| Type | Non-rechargeable disposable battery |
| Capacity | |
| 12V 4200 mAh | |
| 15V 5600 mAh | |
| Battery Performance |
| Monitoring Time | ≥12 hours |
| Defibrillation Cycles | |
| 150 J | ≥460 times |
| 200 J | ≥360 times |
| 360 J | ≥210 times |
| Standby Life | > 6 years |
| Low Battery Operation | ≥30 minutes or multiple discharges |
| ECG & Monitoring | |
| ECG Leads | 3 leads (I, II, III) |
| Gain | Supported |
| Common Mode Suppression | 105 dB |
| Recovery Time | ≤2 seconds |
| Electrode Pads | |
| Type | Disposable multifunction pads |
| Modes | Adult / Pediatric (auto detection) |
| Cable Length | 1.2 m |
| Validity | 42 months |
| Data Storage | |
| ECG Storage | Up to 5 hours |
| Event Records | 1000 events |
| Recording Time | Up to 1 hour |
| Self-Test Reports | 1500 files |
| Connectivity | |
| Wireless | Wi-Fi |
| Network | 2G / 3G / 4G / 5G |
| Automatic Self-Test | |
| Frequency | Daily / Weekly / Monthly / Quarterly |
| Features | |
| Operation | Fast, automated emergency response |
| Design | Compact and durable |
| Safety | Intelligent monitoring and alarms |
| Application | Hospitals, clinics, public areas, emergency services |
