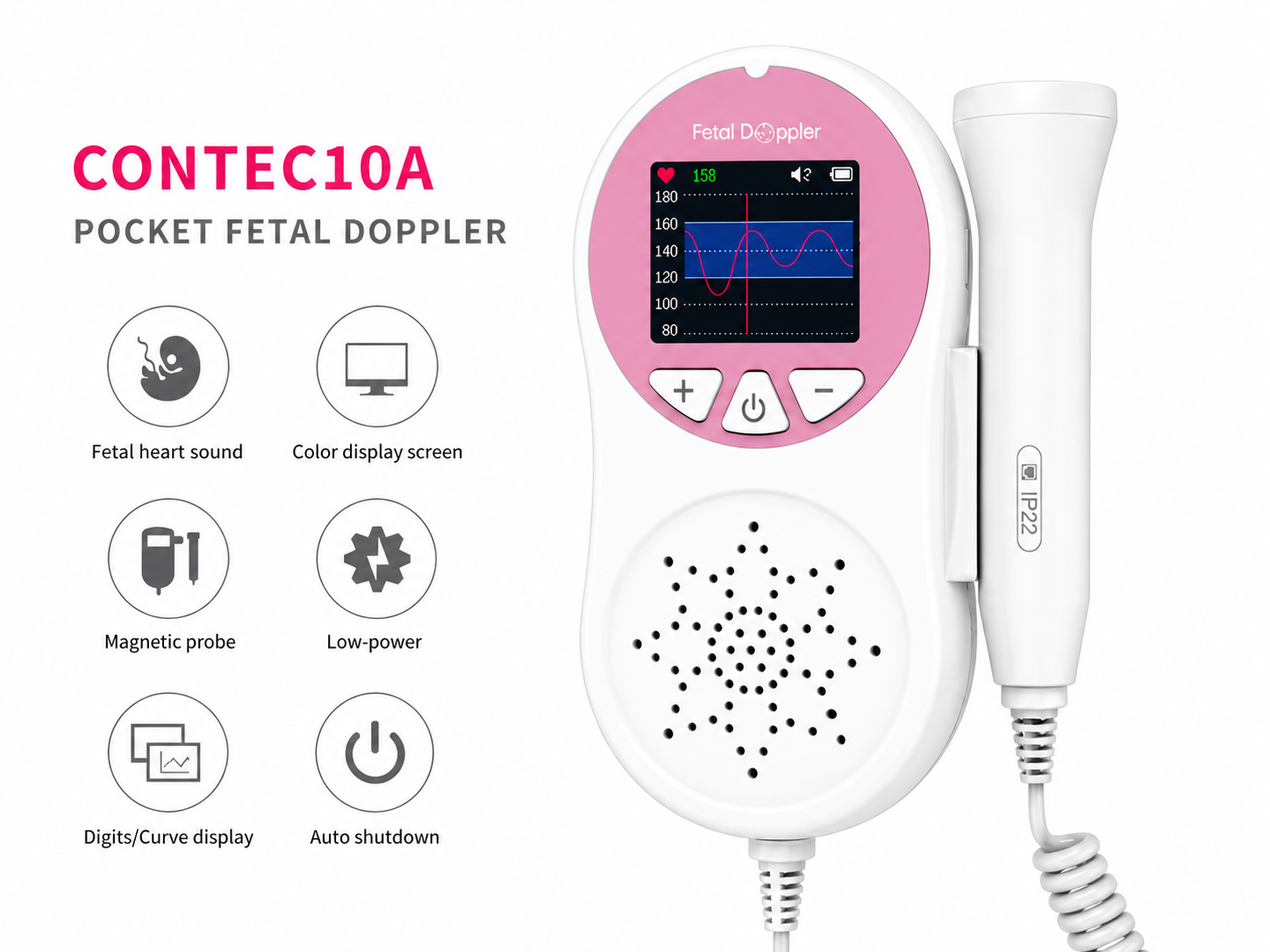

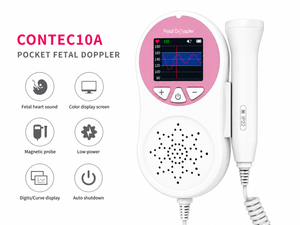

Compact Fetal Doppler CONTEC10A
The Compact Fetal Doppler CONTEC10A is a handheld device designed for early and reliable fetal heart rate monitoring. Built with a sensitive Doppler probe and clear LCD display, it allows healthcare professionals and expectant mothers to easily detect and monitor fetal heart activity.
Its compact design, low power consumption, and user-friendly interface make it suitable for hospitals, clinics, and home use. With both digital and waveform display options, the device provides accurate and real-time monitoring, ensuring convenience and confidence during pregnancy care.
feature:Title|Description or use the custom.benefits metafield for automatic feature generation.The Compact Fetal Doppler CONTEC10A is a handheld device designed for early and reliable fetal heart rate monitoring. Built with a sensitive Doppler probe and clear LCD display, it allows healthcare professionals and expectant mothers to easily detect and monitor fetal heart activity.
Its compact design, low power consumption, and user-friendly interface make it suitable for hospitals, clinics, and home use. With both digital and waveform display options, the device provides accurate and real-time monitoring, ensuring convenience and confidence during pregnancy care.
| General Information | |
| Device Type | Handheld Fetal Doppler |
| Application | Fetal Heart Rate Monitoring |
| Display | |
| Screen Type | 1.77″ LCD Screen |
| Display Mode | Digital and waveform display |
| Indicators | Battery level indication |
| FHR Measurement | |
| Measurement Range | 50 BPM – 240 BPM |
| Resolution | 1 BPM |
| Accuracy | ±2 BPM |
| Probe Performance | |
| Nominal Frequency | 3.0 MHz |
| Working Frequency | 3.0 MHz ±10% |
| Output Power | < 20 mW |
| Output Beam Intensity | < 20 mW/cm² |
| Spatial-Peak Temporal-Average Intensity | < 100 mW/cm² |
| Working Mode | Continuous wave Doppler |
| Effective Radiating Area | ≤ 208 mm² |
| Audio Output | |
| Sound Modes | Built-in speaker and external headphone |
| Feature | Clear fetal heart sound detection (≥12 weeks pregnancy) |
| Power & Battery | |
| Working Voltage | DC 3V |
| Battery Type | 2 × 1.5V AA batteries |
| Physical Specifications | |
| Dimensions | 157 × 99 × 27 mm |
| Weight | ~207 g (with batteries) |
| Functions & Features | |
| Operation | Easy to use, compact design |
| Probe | Magnetic probe |
| Display | Color display with digit/curve waveform |
| Auto Shutdown | After 60 seconds without signal |
| Usage | Hospital, clinic, and home use |
