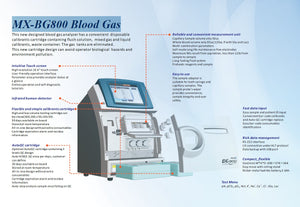

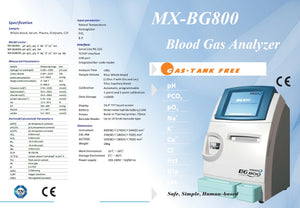

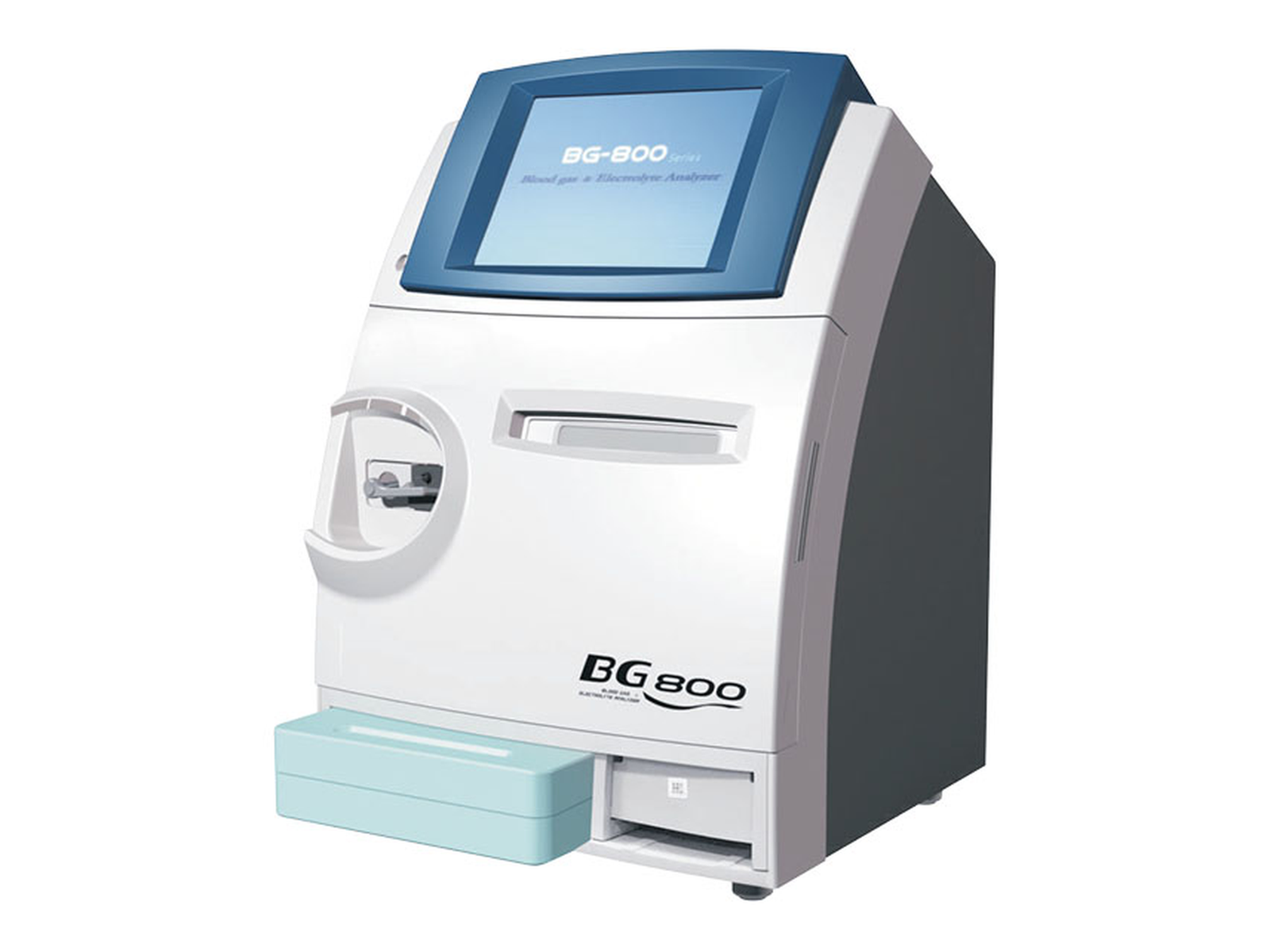

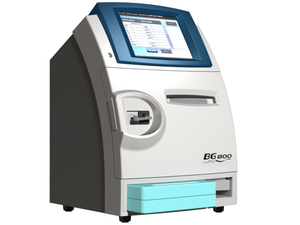

MX-BG800 Blood Gas Analyzer
The MX-BG800 Blood Gas Analyzer is a compact and fully integrated diagnostic system designed for fast and accurate blood gas and electrolyte analysis. Built with an advanced cartridge-based system, it eliminates the need for external gas tanks, reducing maintenance requirements and improving operational safety.
The analyzer delivers rapid results with minimal sample volume, making it ideal for critical care, emergency departments, and laboratory environments. Its intuitive touchscreen interface, automated calibration system, and flexible data management features enhance workflow efficiency while ensuring reliable and consistent performance.
feature:Title|Description or use the custom.benefits metafield for automatic feature generation.The MX-BG800 Blood Gas Analyzer is a compact and fully integrated diagnostic system designed for fast and accurate blood gas and electrolyte analysis. Built with an advanced cartridge-based system, it eliminates the need for external gas tanks, reducing maintenance requirements and improving operational safety.
The analyzer delivers rapid results with minimal sample volume, making it ideal for critical care, emergency departments, and laboratory environments. Its intuitive touchscreen interface, automated calibration system, and flexible data management features enhance workflow efficiency while ensuring reliable and consistent performance.
| Sample & Measurement | |
| Sample Type | Whole blood, Serum, Plasma, Dialysate, CSF |
| Sample Volume | 95 µL whole blood (120 µL with Glu and Lac) |
| Capillary Volume | 50 µL |
| Measured Parameters | |
| pH | 6.000 – 9.000 |
| pCO₂ | 0.667 – 26.67 kPa / 5.0 – 200.0 mmHg |
| pO₂ | 0 – 106.7 kPa / 0 – 800.0 mmHg |
| K⁺ | 0.50 – 10.00 mmol/L |
| Na⁺ | 50.0 – 200.0 mmol/L |
| Cl⁻ | 20.0 – 200.0 mmol/L |
| Ca²⁺ | 0.10 – 5.00 mmol/L |
| Hct | 12.0 – 65.0 % |
| Glucose | 1.1 – 66.7 mmol/L |
| Lactate | 0.4 – 30.0 mmol/L |
| Calculated Parameters | |
| pH (TC) | Temperature corrected pH |
| pCO₂ (TC) | Temperature corrected pCO₂ |
| pO₂ (TC) | Temperature corrected pO₂ |
| TCO₂ | Total CO₂ |
| HCO₃⁻ | Bicarbonate |
| BEecf / BEb | Base excess |
| SBC | Standard bicarbonate |
| sO₂% | Oxygen saturation |
| Ca²⁺ (7.4) | Normalized ionized calcium |
| TCa | Total calcium |
| AG | Anion gap |
| RI | Respiratory index |
| AaDO₂ | Alveolar-arterial oxygen difference |
| tHb | Calculated hemoglobin |
| Performance | |
| Analysis Time | < 90 seconds |
| Sample-to-Sample Time | < 120 seconds |
| Calibration | Automatic, programmable (1-point and 2-point) |
| Display & Interface | |
| Display | 10.4″ TFT Touch Screen |
| Interface | RS-232, TCP/IP, USB |
| Barcode | Integrated barcode reader |
| System Features | |
| Technology | Cartridge-based system (gas tank free) |
| Electrodes | Long-life, maintenance-free |
| Preheating | Automatic reagent and sample preheating |
| Sample Input | Syringe and capillary compatible |
| Data & Connectivity | |
| Storage Capacity | >10,000 results |
| Connectivity | LIS integration (HL7 protocol) |
| Backup | USB data backup |
| Power & Battery | |
| Battery | Nickel-metal hydride, 3.0Ah |
| Power Supply | 100–240V, 50/60 Hz |
| Dimensions & Weight | |
| Instrument Size | 400 (W) × 574 (H) × 344 (D) mm |
| Weight | 18 kg |
| Operating Conditions | |
| Working Temperature | 15°C – 30°C |
| Storage Temperature | 5°C – 40°C |
| Additional Features | |
| Calibration Cartridge | Disposable, all-in-one design |
| AutoQC | Optional automatic QC cartridge (3-level QC) |
| Cartridge Life | Up to 30 days onboard |
| Safety | Reduced biological hazard and environmental impact |
| System Features | |
| Technology | Cartridge-based system (gas tank free) |
| Electrodes | Long-life, maintenance-free |
| Preheating | Automatic reagent and sample preheating |
| Sample Input | Syringe and capillary compatible |
| Data & Connectivity | |
| Storage Capacity | >10,000 results |
| Connectivity | LIS integration (HL7 protocol) |
| Backup | USB data backup |
| Power & Battery | |
| Battery | Nickel-metal hydride, 3.0Ah |
| Power Supply | 100–240V, 50/60 Hz |
| Dimensions & Weight | |
| Instrument Size | 400 (W) × 574 (H) × 344 (D) mm |
| Weight | 18 kg |
| Operating Conditions | |
| Working Temperature | 15°C – 30°C |
| Storage Temperature | 5°C – 40°C |
| Additional Features | |
| Calibration Cartridge | Disposable, all-in-one design |
| AutoQC | Optional automatic QC cartridge (3-level QC) |
| Cartridge Life | Up to 30 days onboard |
| Safety | Reduced biological hazard and environmental impact |
