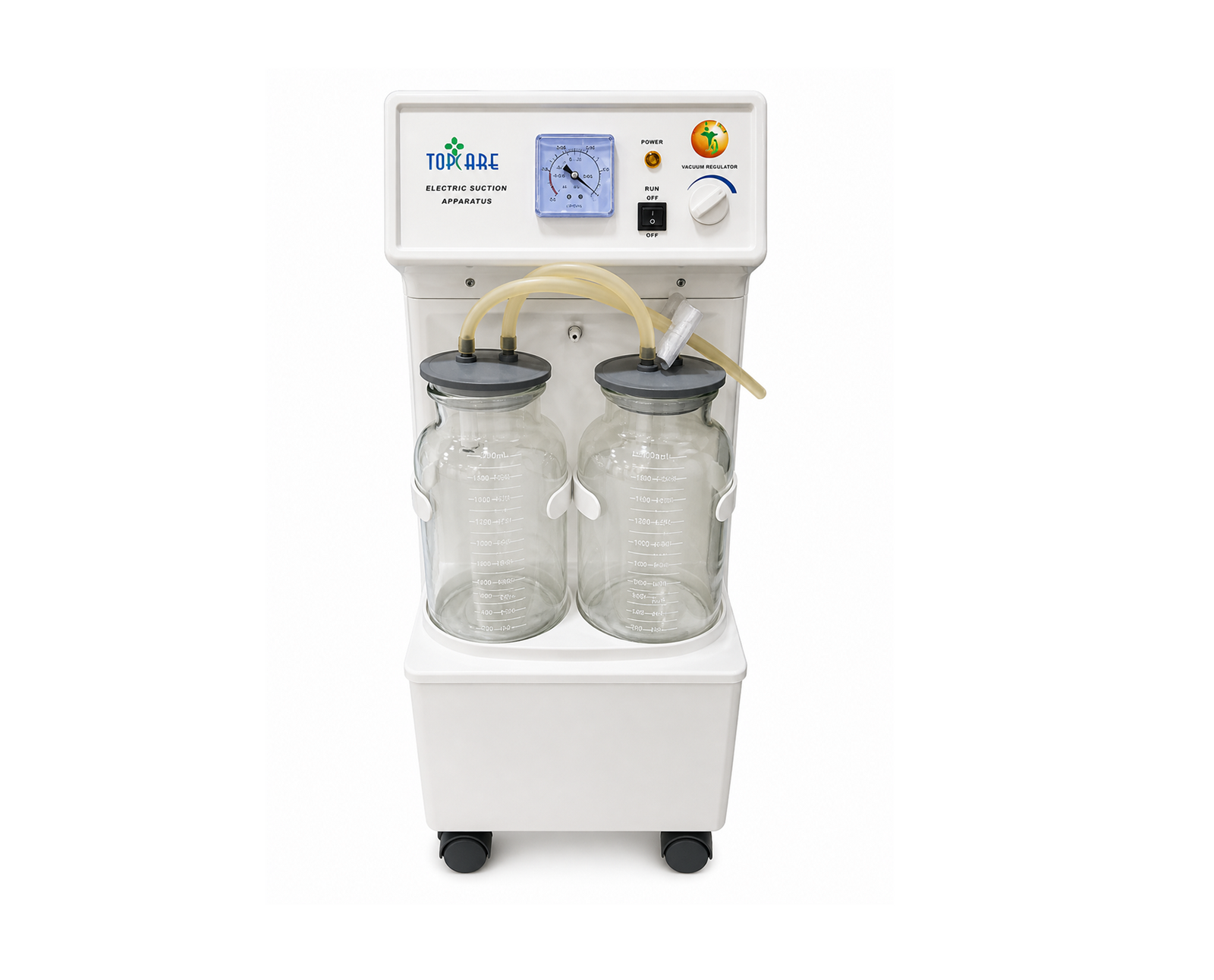

Suction Machine Heavy Duty – Large (TOPCARE)
The Suction Machine Heavy Duty – Large (TOPCARE) is a high-performance medical suction unit designed for efficient removal of fluids in clinical and hospital environments. Equipped with an oil-free piston pump, it ensures clean operation without oil contamination while delivering strong and consistent suction performance.
The system features adjustable negative pressure, dual large-capacity collection bottles, and both manual and foot pedal control for ease of use. Its durable construction, low noise operation, and reliable performance make it ideal for surgical procedures, emergency care, and general medical use.
feature:Title|Description or use the custom.benefits metafield for automatic feature generation.The Suction Machine Heavy Duty – Large (TOPCARE) is a high-performance medical suction unit designed for efficient removal of fluids in clinical and hospital environments. Equipped with an oil-free piston pump, it ensures clean operation without oil contamination while delivering strong and consistent suction performance.
The system features adjustable negative pressure, dual large-capacity collection bottles, and both manual and foot pedal control for ease of use. Its durable construction, low noise operation, and reliable performance make it ideal for surgical procedures, emergency care, and general medical use.
| General Information | |
| Product Type | Medical Suction Machine |
| Model | H001 |
| Application | Fluid suction in clinical and hospital use |
| Pump & Performance | |
| Pump Type | Oil-free piston pump |
| Ultimate Negative Pressure | ≥0.09 MPa |
| Adjustable Pressure Range | 0.02 MPa – maximum |
| Pumping Rate | ≥20 L/min |
| Operation | |
| Mode | Intermittent and continuous operation |
| Maximum Continuous Working Time | 30 minutes |
| Sustained Rate | 50% |
| Electrical Specifications | |
| Power Supply | AC 220V ±22V / 110V ±11V, 50/60 Hz |
| Input Power | 150 VA ±15% |
| Capacity & Components | |
| Reservoir Capacity | ≥2500 mL per bottle |
| Number of Bottles | 2 pcs |
| Noise & Physical Specifications | |
| Noise Level | ≤60 dB(A) |
| Dimensions | 350 × 312 × 800 mm |
| Weight | 20 kg |
| System Features | |
| Pump Design | Oil-free (no oil mist pollution) |
| Panel | Water-resistant plastic panel |
| Control | Manual switch and foot pedal switch |
| Safety | Overflow valve to prevent backflow |
| Included Components | |
| Suction Unit | Main device |
| Suction Hose | φ7 × φ12, length ≥1.3 m |
| Suction Bottles | 2 pcs |
| Air Filters | 2 pcs |
| Fuse | 2 pcs |
| Power Cord | Included |
| Pedal Switch | Included |
| Manual | Included |
