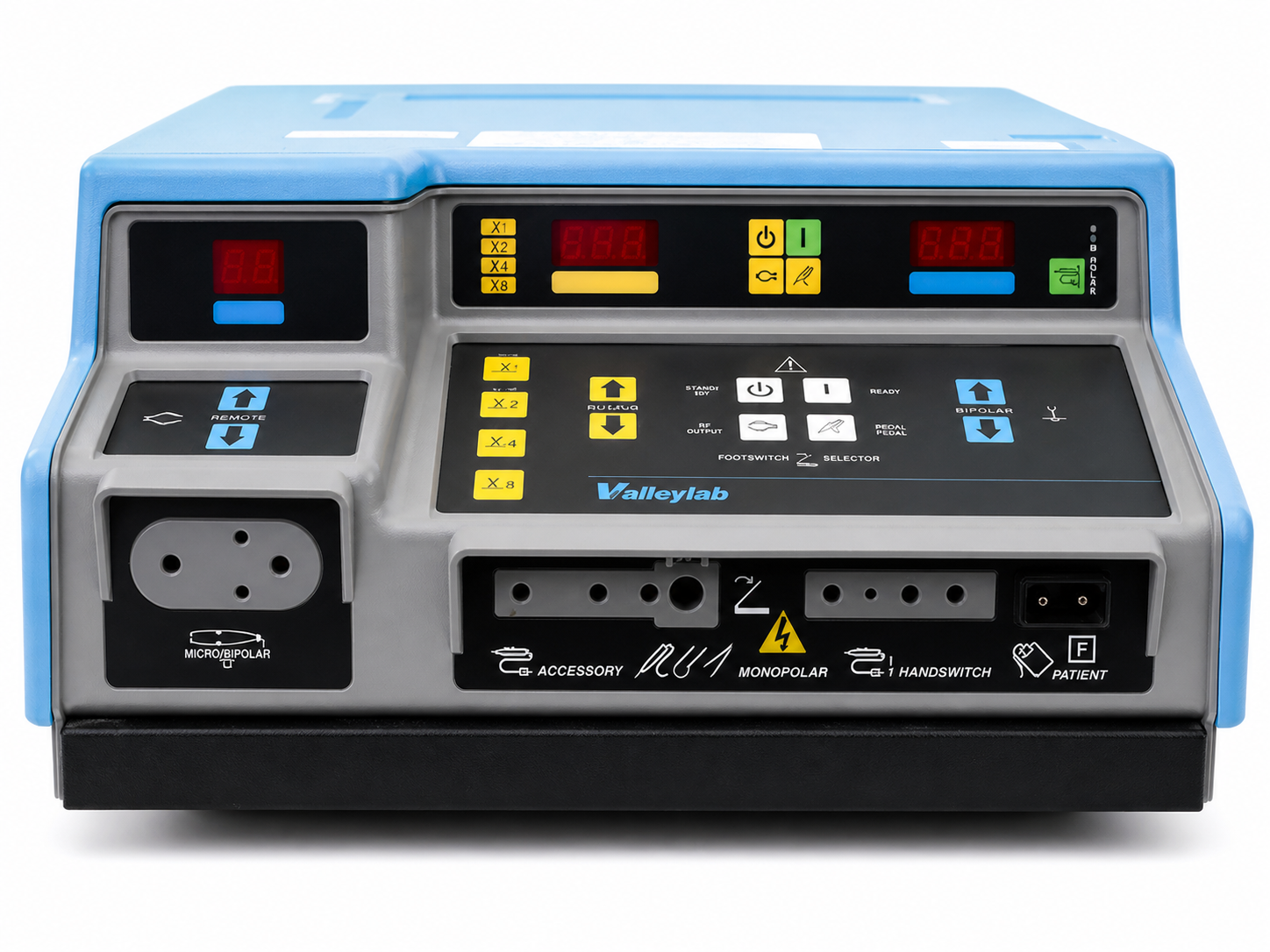

Valleylab Force 2 Electrosurgical Generator
The Valleylab Force 2 Electrosurgical Generator is a high-performance surgical device designed for precise cutting and coagulation in a wide range of procedures. It supports both monopolar and bipolar outputs, offering flexibility for different surgical techniques.
Built with advanced safety and control features, the system includes audible and visual alarms along with a patented Return Electrode Monitoring (REM™) system that continuously checks patient impedance to prevent burns and ensure safe operation. Its versatile modes and stable power delivery make it suitable for general surgery, laparoscopic procedures, and other clinical applications requiring accuracy and reliability.
feature:Title|Description or use the custom.benefits metafield for automatic feature generation.The Valleylab Force 2 Electrosurgical Generator is a high-performance surgical device designed for precise cutting and coagulation in a wide range of procedures. It supports both monopolar and bipolar outputs, offering flexibility for different surgical techniques.
Built with advanced safety and control features, the system includes audible and visual alarms along with a patented Return Electrode Monitoring (REM™) system that continuously checks patient impedance to prevent burns and ensure safe operation. Its versatile modes and stable power delivery make it suitable for general surgery, laparoscopic procedures, and other clinical applications requiring accuracy and reliability.
| General Information | |
| Device Type | Electrosurgical Generator |
| Application | Cutting and Coagulation |
| Output Modes | Monopolar and Bipolar |
| Operating Modes | |
| Cut Mode | Standard cutting |
| Blend Modes | Blend 1 / Blend 2 / Blend 3 |
| Coagulation | Standard Coagulation |
| Low Voltage Coag | Controlled desiccation |
| Bipolar Mode | Precision bipolar output |
| Power & Electrical | |
| Maximum Output Power | 300 W (Cut Mode) |
| Input Voltage | 120 VAC (85–135 VAC range) |
| Frequency | 45 – 65 Hz |
| Power Consumption | 300 W |
| Output Waveforms | |
| Cut | 500 kHz sinusoidal waveform |
| Blend Modes | 500 kHz burst sinusoidal (varying duty cycles) |
| Coagulation | Damped sinusoidal burst |
| Low Voltage Coag | Controlled burst waveform |
| Bipolar | Unmodulated sinusoidal waveform |
| Output Characteristics | |
| Cut | Nominal 300 W |
| Blend 1 | Nominal 250 W |
| Blend 2 | Nominal 200 W |
| Blend 3 | Nominal 150 W |
| Coag | Nominal 120 W |
| Low Voltage Coag | Nominal 99 W |
| Bipolar | Nominal 70 W |
| Safety System | |
| REM™ Monitoring | Continuous patient impedance monitoring |
| Safety Function | Automatic shutdown on fault detection |
| Alarms | Audible and visual alarms |
| Physical Specifications | |
| Dimensions | 13″ (W) × 21″ (D) × 8″ (H) |
| Weight | 23 lbs |
| Cooling | Convection cooling (no fan) |
| Leakage & Monitoring | |
| Low Frequency Leakage | <10 mA (normal), <100 mA (fault conditions) |
| High Frequency Leakage | <150 mA RMS |
| REM Measurement Frequency | 140 kHz |
| REM Measurement Current | Max 3 mA |
| Resistance Range | 5 – 135 ohms (REM pad) |
| Audio & Indicators | |
| Indicator Tones | Adjustable (minimum 45 dB at 1 meter) |
| Alarm Tones | Fixed (minimum 65 dB at 1 meter) |
| Included / Optional Accessories | |
| Monopolar Foot Switch | Included |
| Bipolar Foot Switch | Optional |
| Rolling Cart | Optional |
